THE NEXT GENERATION OF DUNNAGE AIR BAGS
IMPEL Providing Cost Effective Dunn age Bag Solutions to Transportation Damage Problems and our  dunnage bags are Ideal damage prevention sevices for all type of shipping packages, rolls, cartons, skids, pallets, and good for direct rail and truck shipments, as well as Intermodal shipments.

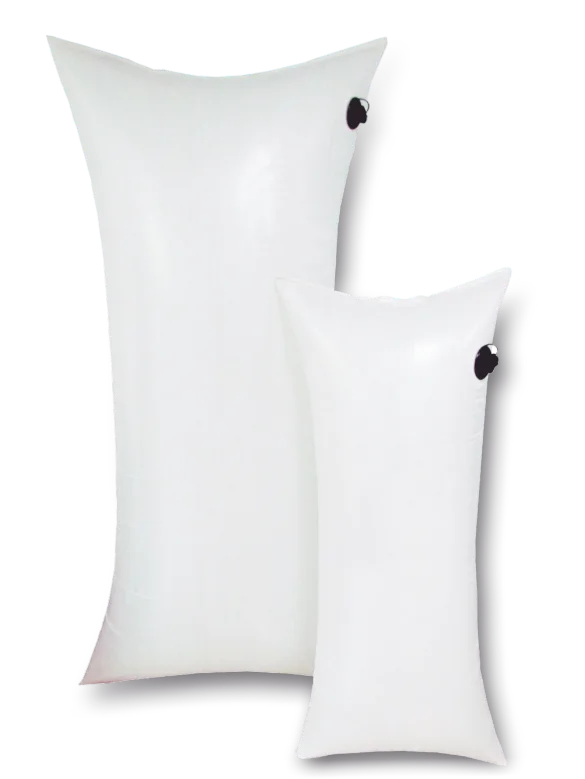

Heavy-duty woven Dunnage bags are perfect for superfluousheavyweightrequirements
arrow
High Strength Polyethylene, polypropylene Liner and Woven Polypropylene outer shell
arrow
High performance, light weight metallocene based liner (Optional)
arrow
Good elasticity which allows the film to lay extremely flat
arrow
Flow valve is a standard feature on all bags
arrow
Bags fill four times faster than most other bags on the market

Light weight Kraft Dunnage bags are perfect for light and medium duty applications

We use the highest quality, lightweight Kraft paper of high tensile strength, manufactured to our challenging specifications.

See below for specifications of both Pillow and Rectangle dunnage paper bags.
arrow
Lightweight Bags, light weight metallocene based liner (Optional)
arrow
High Strength Polyethylene, polypropylene Liner and Kraft paper outer shell
arrow
Good elasticity which allows the film to lay extremely flat.
arrow
Flow valve is a standard feature on all bags
arrow
Bags fill four times faster than most other bags on the market
arrow
Level 1, 2, 3, 4 and 5 bags available

Vinyl dunnage bags are perfect for More Surface Coverage than Any Other Bag
Vinyl films have greater elasticity than Kraft paper, woven fabric, and polyester films. The softer, flexible IMPEL’s vinyl Dunn age air bags expand and contract with the change in temperature and altitude, unlike paper, Woven air bags which can burst upon reaching higher elevations. This extra ability to stretch creates cushioning efforts provides virtuous immobilize cargo and excellent load security
arrow
Remodeling with temperature and altitude swops
arrow
Turbo Flow Valve
arrow
Flaps and/or 2-sided tape for ease of installation
arrow
Durable 0.25mm vinyl
arrow
Accessible center valve placement

Inflatable Paper Dunnage Air Bag Selection

Rating

Load Capacity

Material

Shipping Mode

Level 1 / 2 Ply

40,000 lbs

Kraft Paper

Truck

Level 2 / 4 Ply

60,000 lbs

Kraft Paper

Seaborne Container

Level 3 / 6 Ply

80,000 lbs

Kraft Paper

Rail


Inflatable Polywoven Dunnage Air Bag Selection

Rating

Load Capacity

Material

Shipping Mode

Level 1 / 2 Ply

40,000 lbs

Poly woven

Truck

Level 2 / 4 Ply

60,000 lbs

Poly woven

Seaborne Container

Level 3 / 6 Ply

80,000 lbs

Poly woven

Rail



Available Sizes

Kraft Paper

Woven fabric

Vinyl

Inches

Metric

Inches

Metric

Inches

Metric

36 x 36"

900 x 900

24 x 24"

600 x 600

36 x 36"

900 x 900

36 x 48"

900 x 1200

24 x 36"

600 x 900

36 x 48"

900 x 1200

36 x 66"

900 x 1650

36 x 36"

900 x 900

36 x 66"

900 x 1650

36 x 72"

900 x 1800

36 x 48"

900 x 1200

36 x 72"

900 x 1800

36 x 84"

900 x 2100

36 x 66"

900 x 1650

40 x 40"

1000 x 1000

48 x 48"

1200x 1200

36 x 72"

900 x 1800

48 x 48"

1200x 1200

48 x 72"

1200 x 1800

36 x 84"

900 x 2100

48 x 72"

1200 x 1800

48 x 84"

1200 x 2100

48 x 72"

1200 x 1800



48 x 96"

1200 x 2400

48 x 84"

1200 x 2100



48 x 96"

1200 x 2400

48 x 118"

1200 x3000





L3W Series polywoven dunnage air bags polywoven dunnage air bags dunnage air-bag for transport load securing See full size image

aa See full size image http://www.stopak.com/images/kraft_2.jpg http://www.stopak.com/images/kraft_1.jpg
